Urethane Casting

Discover Urethane Casting solutions

Molding

Compression Molding For Durable Rubber, Silicone, And Composite Parts. Provides Superior Resistance To Wear And Environmental Stress.
→ Ideal For Gaskets, Vibration Dampers, And Industrial-Grade Components.

Applications: Gaskets, Medical Pads, Insulation

Material – Manufacturers, Hardness

LSR (Liquid Silicone Rubber) : KCC, Shinetsu (10 ~ 90A)

HCR (High Consistency Silicone Rubber) : KCC, Shinetsu, Dow Corning (10~90A)

Medical Silicone : ISO10993, USP Class VI (40~70A), Nusil (Wacker), Dow Coring

Fluor Silicone : Shinetsu (20~80A)

NBR ((Acrylo)Nitrile Butadiene Rubber) : Kumho Petrochemical (40~90A)

EPDM (Ethylene Propylene Diene Monomer) : KUMHO POLYCHEM (40A~90A)

NR (Natural Rubber) : SP Chemical (40~90A)

SBR (Styrene Butadiene Rubber) : SP Chemical (40~90A)

CR (Chloroprene Rubber) : SP Chemical (40~90A)

H-NBR (Hydrogenated-Nitrile Butadiene Rubber) : SP Chemical (50~90A)

PU (Poly Urethane) : SP Chemical (60~90A)

Medical Silicone, Fluor Silicone : MOQ 20Kg

Quick Turn(Mobile Phone Size)

• Simple5-6 Day
• Normal8 Day
• Complex11 Day

Mix. Size & Color

Max. Size : 550X900x400mm

Pantone Color Code Or Chip Is Mandatory

NBR/EPDM – MOQ 100Kg And All Others Will Be

10Kg NBR Clear Is Not Feasible For Coloring

Life Cycle Time

Tool Material : 1.5K (S45C)

Mass Production : 200K (P20)

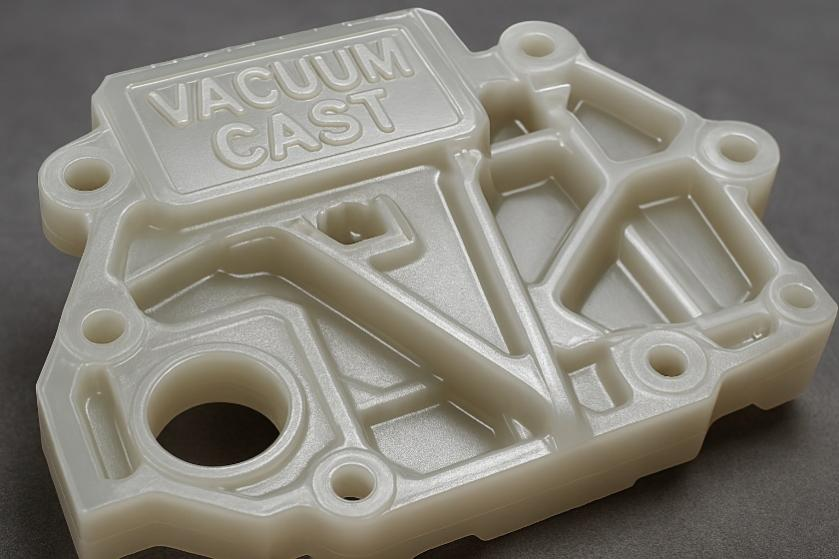

Vacuum casting

Production technologies

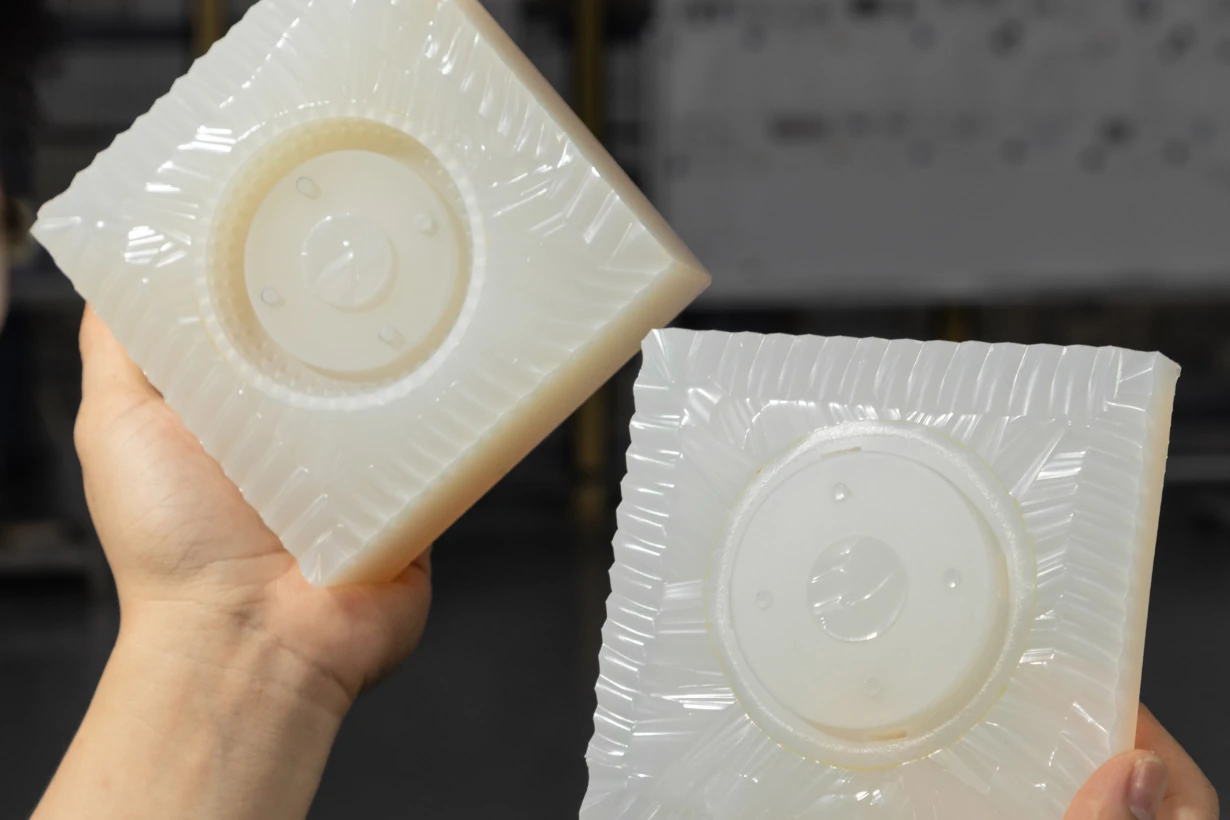

Vacuum casting is the most economical alternative to small-series injection moulding of plastic parts. This method allows you to simulate the final moulded part or finished product. The mould is made from silicone rubber and a CNC or SLA part serves as the master. These moulds replicate details and textures and ensure a uniform surface from one part to the next.

Silicone or resin moulds can be used for higher accuracy of up to +/-0.1 mm. Reaction injection moulding (RIM production) is ideal for large components and varying wall thicknesses.

Vacuum casting enables the casting of two-colour components, the recasting of components and insert casting.

Urethane Casting Materials

Polyurethane is a widely used thermoset material grouping known for its strength, durability, abrasion resistance, and versatility. Different urethanes can mimic the properties of many common thermoplastics. For example, a stiff urethane cast part is “polycarbonate-like,” and a more flexible plastic may be “polypropylene-like.” We group our urethane materials into general categories to help you make quicker decisions and get the best performance on your project. The list below describes the categories of materials and technical examples when selecting polyurethanes.

Cast Urethane Materials

Material Name	Shore Hardness	Description	Technical Information	Data Sheets
General Purpose	Shore D 76-80	An impact-resistant Shore 78D material used for a variety of purposes, from enclosure housings to concept models. This material exhibits ABS-like properties.	TC-878, TC-852, or equivalent	General Purpose Data Sheet
Rigid Clear	Shore D 80	A versatile, Shore D 80, clear polyurethane. A matte finish will give a frosted appearance and a higher gloss will increase its transparency.	Poly-Optic 1410 or equivalent	Rigid Clear Data Sheet
ABS-Like, FR	Shore D 78-82	A tough Shore 80D flame retardant material that is UL Listed with a flammability rating at 1/16″ (1.6 mm).	TC-891-FR or equivalent	ABS-Like, FR Data Sheet
Polypropylene-Like	Shore D 65-75	A tough and abrasion-resistant flexible urethane with polypropylene-like ductility.	TC-872, HP-2270D, or equivalent	Polypropylene-Like Data Sheet
Polycarbonate-Like	Shore D 82-86	A stiff, high impact, high HDT, material with a wide variety of uses. Simulates polycarbonate (non-clear), Shore 84D.	TC-854 or equivalent	Polycarbonate-Like Data Sheet
Glass-Filled Nylon-Like	Shore D 85	A stiff, USP Class VI, high-performance urethane with high impact strength and a HDT of 190°F (88°C).	PT8902 or PT8952 (FR)	Glass-Filled Nylon-Like Data Sheet
Rubber-Like Polyurethane	Shore A 25-95	A Shore A elastomer with a high elongation to break.	F-130 to F-190 or equivalent	Rubber-Like Polyurethane Data Sheet
Clear Rubber-Like Polyurethane	Shore A 40-95	A colorless Shore A elastomer with a high elongation to break. Matte finish will give a frosted appearance, and higher gloss will increase its transparency.	WC-540 to WC-595 or equivalent	Clear Rubber-Like Polyurethane Data Sheet

Note: Equivalent materials may be used based on availability.

Applications of Urethane Casting

Low-Volume Production

Urethane cast parts are perfect for low-quantity production—when volumes do not justify investment in injection mold tooling—as well as for first run production parts, which can be completed weeks before production tooling is ready.

Advanced Prototyping

The urethane casting process and relatively inexpensive tooling involved makes it easy and economical to make any necessary design changes. Additionally, different materials can be used with the same mold, making it possible to test designs with a variety of materials

Market Testing

End-user functionality and a high-quality finish makes urethane cast parts ideal for consumer testing, user evaluation and concept models. Using the cast urethane process means that changes can be incorporated quickly for either further testing or market launch.

Discover new possibilities

Get in touch with us, describe your project and receive a quote and advice for the rapid production of your parts.

You can directly send the following data formats: Catia, NX, STEP, IGES, PRT, SLDPRT, DXF, and DWG.

We can convert CAD data formats so they are usable for production. Email:service@goldenrapid.com
