Discover Sheet Metal Fabrication services
Mass Production Of Metal Components With High Durability Using Stamping Dies.
Suitable For Brackets, Terminals, And Structural Frames.
Scalable For High-Volume Needs, Reliable Dimensional Accuracy.
Materials
Iron Plate
Cold Rolled Steel Sheet
Hot Rolled Steel Sheet
AL, Sus, Copper
Size
Part Max : 1,000x300x200
Quick Turn(Mobile Phone Size)
- Simple2-3 Day
- Normal7 Day
- Complex2-3 wksProduction
Progressive Tool
Fabrication Capabilities
Manufacturing technologies
Our range of services includes laser metal cutting and bending for the production of sheet metal parts. The automated cutting process we use guarantees high precision and quality parts. All parts can be reworked according to your requirements: This includes coating, heat treatment and other processes.
Processable metals
The following materials are available: Aluminium, stainless steel, brass, copper, alloy steel, bronze, titanium and carbon steel.
Tolerances
We offer different tolerance standards according to ISO 2768 (standard, fine) and ISO 2768 (grade 8, 7, 6). Please contact us for detailed information and customised solutions.
| Detail | Dimensional tolerance (mm) |
| Edge to edge (single surface) | 0,127 mm |
| Edge to hole (single surface) | 0,127 mm |
| Hole to hole (single surface) | 0,127 mm |
| Bend to edge/hole (single surface) | 0,254 mm |
| Edge to moulded part (multiple surfaces) | 0,762 mm |
| Overmoulded part (multiple surfaces) | 0,762 mm |
| Bending angle | +/- 1° |
Possible component post-processing
Anodising, passivation, hard oxidation, powder coating, painting, plating, sandblasting, brushing
Advantages of Sheet Metal Fabrication

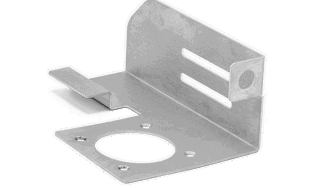

The sheet metal fabrication process is ideal for metal components and can support both prototyping and production quantities.
Multiple finishing options like anodizing and powder coating
Low material waste
Can cost-effectively scale to production volumes
Discover new possibilities
You can directly send the following data formats: Catia, NX, STEP, IGES, PRT, SLDPRT, DXF, and DWG.
We can convert CAD data formats so they are usable for production. Email:service@goldenrapid.com
